首頁歐美晶振12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振

12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振

規格型號：48838828
頻率：25MHz
尺寸：3225mm
PDF
產品描述：12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振,在路由器,交換機等網絡通信設備中,12.88667系列25MHz晶振發揮關鍵作用.通過精準的頻率控制,確保設備在數據交換過程中時鐘同步,減少數據包丟失與延遲.

12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振
針對智能家居,可穿戴設備等消費電子產品領域,該25MHz無源諧振器具備低功耗,小型化優勢,采用貼片封裝設計可靈活集成于緊湊PCB板中.其優異的相位噪聲性能（典型值≤-150dBc/Hz@1kHz偏移）,能減少信號干擾,為藍牙,Wi-Fi等無線模塊提供純凈時鐘支持,提升設備數據傳輸速率與穩定性,滿足消費電子對低功耗,高集成度的需求.

12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振

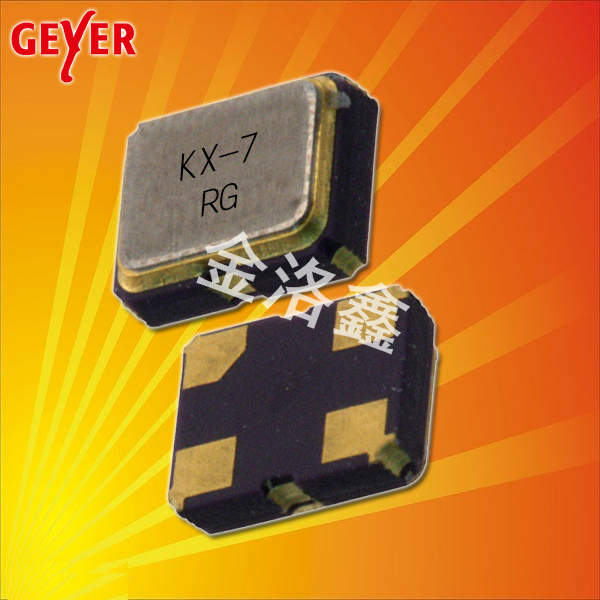

原廠型號 Originalmodel：	12.88667	品牌brand：	GEYE石英晶體諧振器

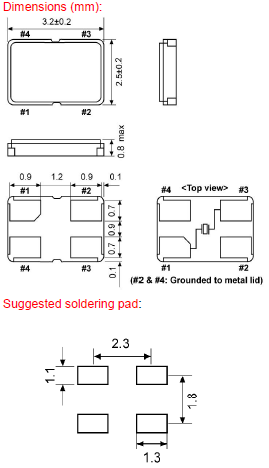

型號名稱 Modelname：	KX-7	Size/Dimension尺寸	3225mm
Type系列：	MHz Crystal	高度PackageHeight：	0.8mm
頻率 frequency：	25MHz	溫度OperatingTemperature	-20~+70℃
Frequency Stability頻率穩定度	-	腳位Termination：	4Pad
frequencytolerance頻率容差	30PP	封裝類型PackageType：	4-smd
Loadcapacitance 負載電容	12pF	最小包裝數MPQ：	3000

12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振

12.87000	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87001	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	9 pF	± 20 ppm
12.87002	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	7 pF	± 20 ppm
12.87034	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	4 pF	± 20 ppm
12.87080	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87081	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87083	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87086	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 10 ppm
12.87090	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87095	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87105	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 10 ppm
12.87107	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87109	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12 pF	± 15 ppm
12.87110	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87111	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87112	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87113	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87114	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87115	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87116	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87118	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87119	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87120	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87121	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87123	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87126	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87127	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87128	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 20 ppm
12.87129	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87130	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87131	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87132	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87133	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87134	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87135	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87136	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87137	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	9 pF	± 20 ppm
12.87138	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87139	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87143	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87144	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 5.0 ppm
12.87145	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87146	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87147	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87148	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87149	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87150	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87151	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 30 ppm
12.87152	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87153	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87155	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87157	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87158	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87159	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87160	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87161	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87163	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	7 pF	± 20 ppm
12.87164	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 30 ppm
12.87165	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 20 ppm
12.87166	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
