首頁歐美晶振RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器

RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器

規格型號：61612541
頻率：32.768K
尺寸：3215mm
PDF
產品描述：RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器,其支持多種低功耗工作模式,可根據設備實際需求靈活切換,進一步優化功耗表現,適配各類低功耗電子設備的設計需求.

RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器
針對便攜式,電池供電類設備對功耗的嚴苛要求,RV-3028-C732.768KHZ采用瑞士微晶晶振創新的低功耗電路設計方案,工作電流低至0.5μA以下(典型值,靜態模式下),相比同類型實時時鐘振蕩器功耗降低約30%-40%.這一超低功耗特性,能大幅減少設備在待機與運行過程中的電量消耗,有效延長設備續航時間--例如在智能手環中,可使設備在單次充電后,僅依靠該晶振維持的實時時鐘功能持續工作數月甚至更久,在物聯網傳感器節點等電池供電設備中,也能顯著降低充電或更換電池的頻率,減少維護成本.同時,其支持多種低功耗工作模式,可根據設備實際需求靈活切換,進一步優化功耗表現,適配各類低功耗電子設備的設計需求.

RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器

原廠型號 Originalmodel：	RV-3028-C732.768KHZ	品牌brand：	瑞士微晶Micro
Manufacturer品牌	瑞士微晶Micro	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	RV-3028	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	0.8mm
Frequency頻率	32.768K	Termination 腳位	8-pad
輸出方式 Output：	CMOS	PackageType 封裝類型	8-SMD
Voltage-Supply電壓	1.1V-5.5V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±1ppm	安裝方式 Installation：	Surfacemount

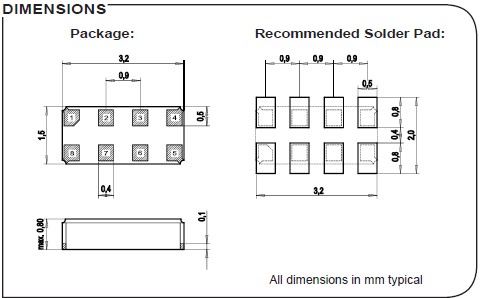

Size/Dimension尺寸	3215mm	最小包裝數MPQ：	3000

RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器

DSC1123CI2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AE2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1001CI2-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1123CE1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103DI2-312.5000	Microchip	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123DI2-050.0000	Microchip	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123BL2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI5-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1103CI5-300.0000	Microchip	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123DL5-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123NL5-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
MX574BBD322M265	Microchip	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V	±50ppm
DSC1001CI2-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1123CI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123AE2-300.0000	Microchip	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123AI2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1122CE1-125.0000	Microchip	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V	±50ppm
DSC1123AE2-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103CI1-075.0000	Microchip	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123AI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC557-0344SI1	Microchip	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±50ppm
DSC6003CI1A-033.0000	Microchip	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6111CI1A-008.0000	Microchip	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6011JI1A-024.0000	Microchip	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6083CI2A-032K800	Microchip	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-307K000	Microchip	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-004.0000	Microchip	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-032.0000	Microchip	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-250K000	Microchip	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-002K000	Microchip	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6101JI2A-024.0000	Microchip	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC1001CC1-047.3333	Microchip	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1030BC1-008.0000	Microchip	DSC1030	MEMS	8MHz	CMOS	3V	±50ppm
DSC1001BC1-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033BC1-026.6000	Microchip	DSC1033	MEMS	26MHz	CMOS	3.3V	±50ppm
DSC1001DI1-001.8432	Microchip	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-048.0000	Microchip	DSC1033	MEMS	48MHz	CMOS	3.3V	±50ppm
DSC1033CI1-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±50ppm
DSC1033DI1-012.0000	Microchip	DSC1033	MEMS	12MHz	CMOS	3.3V	±50ppm
DSC1033DI1-036.0000	Microchip	DSC1033	MEMS	36MHz	CMOS	3.3V	±50ppm
DSC1001CI1-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-050.0000	Microchip	DSC1033	MEMS	50MHz	CMOS	3.3V	±50ppm
DSC6001CI1A-011.0592	Microchip	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC1001CI2-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1033BE2-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±25ppm
DSC1001DI2-038.4000	Microchip	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1001CI5-033.3333	Microchip	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101DM2-012.0000	Microchip	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1001DE5-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101AI2-040.0000	Microchip	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-080.0000	Microchip	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-064.0000	Microchip	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1124CI5-100.0000	Microchip	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±10ppm
