- 規格型號：80702191
- 頻率：148.500M
- 尺寸：7050mm
- 產品描述：SXO75L3B481-148.500M,美國松圖Suntsu晶振,7050差分晶振封裝能為內部電路設計提供更充足的空間,進一步優化高頻信號的穩定性與散熱性能,同時仍能滿足多數中高端電子設備的PCB布局需求.

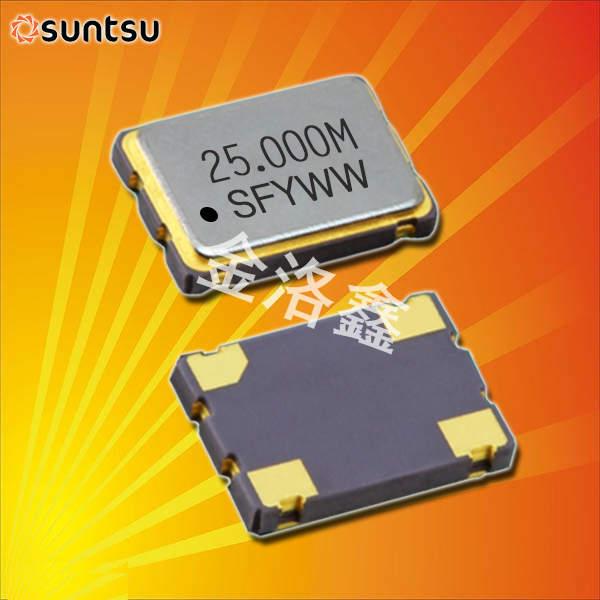

SXO75L3B481-148.500M,美國松圖Suntsu晶振,7050差分晶振
.png)
.png)
SXO75L3B481-148.500M,美國松圖Suntsu晶振,7050差分晶振
SXO75L3B481-148.500M是美國松圖Suntsu推出的高性能差分晶振,核心頻率精準鎖定148.500MHz,憑借差分信號傳輸?shù)莫?dú)特優勢,能有效抑制共模干擾,輸出更純凈,穩定的時鐘信號.148.500M的高頻特性與差分設計的抗干擾能力相結合,使其特別適配高端電子設備,如5G基站核心模塊,高速服務器主板,工業級FPGA控制系統等,可保障設備在高頻率,高復雜度工作環境下的信號同步性,避免因信號失真導致的系統故障,是高端電子設備的核心時鐘元器件.
.png)
.png)
SXO75L3B481-148.500M,美國松圖Suntsu晶振,7050差分晶振
| 原廠型號 Originalmodel： | SXO75L3B481-148.500M | 品牌brand： | 松圖Suntsu |
| Manufacturer品牌 | 松圖Suntsu | OperatingTemperature溫度 | -40+85℃ |
| Series型號 | SXO75L | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 1.7mm |
| Frequency頻率 | 148.5M | Termination 腳位 | 6-pad |
| 輸出方式 Output： | LVDS差分晶振 | PackageType 封裝類型 | 6-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±30PP | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7050mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
SXO75L3B481-148.500M,美國松圖Suntsu晶振,7050差分晶振
.png)
SXO75L3B481-148.500M,美國松圖Suntsu晶振,7050差分晶振
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
