首頁進口晶振7AD01600A3Z無源晶振,日產進口晶振,KDS晶振

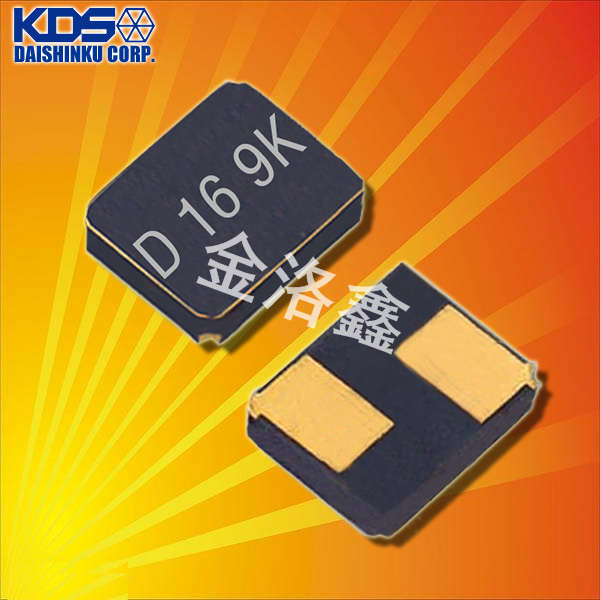

7AD01600A3Z無源晶振,日產進口晶振,KDS晶振

規格型號：5949003
頻率：16M
尺寸：3225mm
PDF
產品描述：7AD01600A3Z無源晶振,日產進口晶振,KDS晶振,廣泛應用于多領域電子設備:在消費電子領域,可作為智能手機,平板電腦的觸控芯片與顯示驅動芯片的時鐘源,確保操作響應及時,畫面刷新流暢.

7AD01600A3Z無源晶振,日產進口晶振,KDS晶振
作為日產進口晶振,7AD01600A3Z依托KDS成熟的生產體系與嚴格的品控標準,在可靠性上具備顯著優勢:原材料選用高純度人工水晶與耐溫性優異的陶瓷封裝材料,水晶晶體經過精密切割與拋光處理,確保頻率精度與溫度穩定性,生產過程采用全自動化生產線,從晶體鍍膜,封裝焊接到參數檢測均實現精準控制,避免人為因素導致的品質偏差.

7AD01600A3Z無源晶振,日產進口晶振,KDS晶振

原廠型號 Originalmodel：	7AD01600A3Z	品牌brand：	KDS

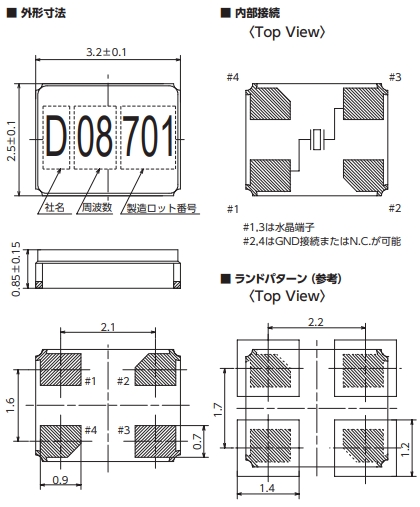

型號名稱 Modelname：	DSX321G黑色面陶瓷晶振	Size/Dimension尺寸	3225mm
Type系列：	MHz Crystal	高度PackageHeight：	0.85mm
頻率 frequency：	16M	溫度OperatingTemperature	-40+85℃
Frequency Stability頻率穩定度	20PP	腳位Termination：	4Pad
frequencytolerance頻率容差	20PP	封裝類型PackageType：	4-smd
Loadcapacitance 負載電容	8PF	最小包裝數MPQ：	3000

7AD01600A3Z無源晶振,日產進口晶振,KDS晶振

KDS晶振	1TJH125DR1A0004	DST1610A	1610	32.768KHZ	12.5PF
KDS晶振	TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF
KDS晶振	1TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF
KDS晶振	1TJF0SPDJ1AI00S	DST310S	3215	32.768KHZ	10.0PF
KDS晶振	1TJF080DP1AI00P	DST310S	3215	32.768KHZ	8PF
KDS晶振	1TJF090DP1AI007	DST310S	3215	32.768KHZ	9PF
KDS晶振	1TJF0SPDP1AI008	DST310S	3215	32.768KHZ	10.0PF
KDS晶振	1TJF125DP1AI009	DST310S	3215	32.768KHZ	12.5PF
KDS晶振	1TJF090DP1AA00L	DST310S	3215	32.768KHZ	9PF
KDS晶振	1TJF080DP1AA00K	DST310S	3215	32.768KHZ	8PF
KDS晶振	1TJF0SPDP1AA00G	DST310S	3215	32.768KHZ	10.0PF
KDS晶振	1TJF0SPDN1A000B	DST310S	3215	32.768KHZ	10.0PF
KDS晶振	1TD125DGNS003	DT-26	206	32.768KHZ	12.5PF
KDS晶振	1TD125DHNS036	DT-26	206	32.768KHZ	12.5PF
KDS晶振	1TD125DHNS002	DT-26	206	32.768KHZ	12.5PF
KDS晶振	1TD060DHNS014	DT-26	206	32.768KHZ	6.0PF
KDS晶振	1TD125BHNS001	DT-26	206	32.768KHZ	12.5PF
KDS晶振	1TD075BHNS001	DT-26	206	32.768KHZ	7.5PF
KDS晶振	1TD125BFNS001	DT-26	206	32.768KHZ	12.5PF
KDS晶振	1TD1001HNS001	DT-26	206	32.768KHZ	10.0PF
KDS晶振	1TD1250HNS005	DT-26	206	32.768KHZ	12.5PF
KDS晶振	1TC125DFNS030	DT-38	308	32.768KHZ	12.5PF
KDS晶振	1TC125NFNS002	DT-38	308	32.768KHZ	12.5PF
KDS晶振	1TC125AFSS003	DT-38	308	32.768KHZ	12.5PF
KDS晶振	1TC250E65	DT-38	308	32.768KHZ	12.5PF
KDS晶振	1C240000AB0G	DSX321G	3225	40.000MHZ	10PF
KDS晶振	1C241600CDAA	DSX321G	3225	41.6MHZ	10PF
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332MHZ	12PF
KDS晶振	1ZZNAE26000AB0J	DSX211SH	2016	26.000MHZ	7PF
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408MHZ	16PF
KDS晶振	1AJ250004B	SMD-49	11*4.6	25.000MHZ	20PF
KDS晶振	1ZZCAA24000BE0B	DSX211G	2016	24.000MHZ	10PF
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000MHZ	11PF
KDS晶振	1N230000AB0C	DSX321G	3225	30.000MHZ	10PF
KDS晶振	1N240000AB0J	DSX321G	3225	40.000MHZ	15PF
KDS晶振	1XSE098304AR2	DSO321SR	3225	98.304MHZ	3.3V
KDS晶振	1AJ100005B	SMD-49	11*4.6	10.000MHZ	12PF
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000MHZ	7PF
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000MHZ	16PF
KDS晶振	1AJ240006AK	SMD-49	11*4.6	24.000MHZ	16PF
KDS晶振	1AJ240006BB	SMD-49	11*4.6	24.000MHZ	16PF
KDS晶振	1AJ245765C	SMD-49	11*4.6	24.576MHZ	18PF
KDS晶振	ZC08759	DSO211AH	2016	25.000MHZ	3.3V
KDS晶振	1AR270002GA	SMD-49	11*4.6	27.000MHZ	12.9PF
KDS晶振	1AR304002A	SMD-49	11*4.6	30.400MHZ	12PF
KDS晶振	1XXD16367MAA	DSB211SDN	2016	16.367MHZ	3.3V
KDS晶振	ZC12467	DSA211SDN	2016	16.32MHZ	3.3V
KDS晶振	1XXB16367MAA	DSB221SDN	2520	16.367MHZ	2.8V
KDS晶振	1XXB16369JFA	DSB221SDN	2520	16.369MHZ	3.3V
KDS晶振	ZC09382	DSA535SG	5032	18.432MHZ	3.3V
KDS晶振	ZC12456	DSB211SDN	2016	16.320MHZ	3.3V
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000MHZ	12PF
KDS晶振	ZC12965	DSA321SDN	3225	23.04MHZ	3.3V
KDS晶振	ZC13727	DSX221SH	2520	24.000MHZ	10PF
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000MHZ	9PF
KDS晶振	X1H013000B81H	HSX531S	5032	13.000MHZ	8PF
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000MHZ	10PF
KDS晶振	1XSE009600AV	DSO321SV	3225	9.6MHZ	3.3V
KDS晶振	1XSE012000AR58	DSO321SR	3225	12.000MHZ	3.3V
KDS晶振	1ZZNAE48000ZZ0R	DSX211SH	2016	48.000MHZ	7PF
