首頁進口晶振SG3225VEN156.250000MHZ-DDGA,EPSON晶振,3225差分晶振

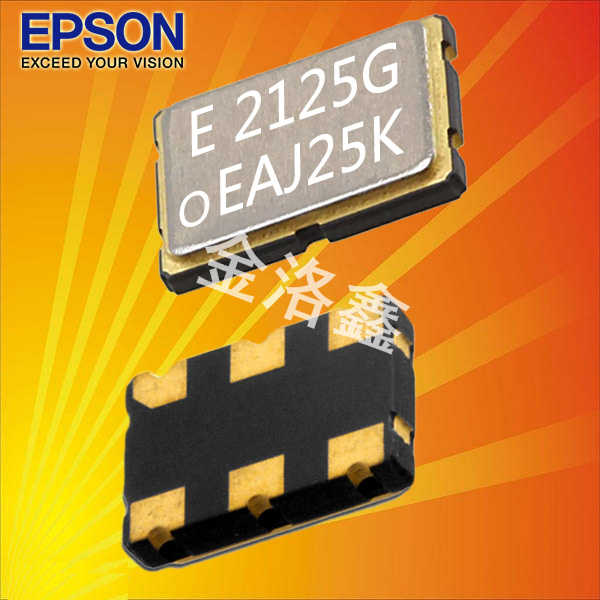

SG3225VEN156.250000MHZ-DDGA,EPSON晶振,3225差分晶振

規格型號：89500714
頻率：156.25M
尺寸：3225mm
PDF
產品描述：SG3225VEN156.250000MHZ-DDGA,EPSON晶振,3225差分晶振,在通信設備中,可用于5G基站,路由器,交換機的高速信號處理模塊,為數據交換提供精準時鐘同步,保障網絡傳輸速率與穩定性.

SG3225VEN156.250000MHZ-DDGA,EPSON晶振,3225差分晶振
SG3225VEN156.250000MHZ-DDGA差分晶振核心參數極具競爭力:輸出頻率精準鎖定156.250000MHz高頻晶振,頻率偏差控制在極小范圍(通常可達±10ppm以內,具體以產品規格書為準),為高速數據處理提供穩定時鐘基準;采用行業通用的3225貼片封裝(3.2mm×2.5mm),在實現小型化的同時,兼容自動化貼片焊接流程,大幅提升終端產品的生產效率;作為差分晶振,輸出端采用差分信號形式(如LVPECL,LVDS等標準,需以規格書為準),信號傳輸速率與抗干擾能力遠超單端晶振;輸入電壓適配3.3V等主流供電標準,功耗控制優異,在保證高頻性能的同時,降低系統能耗.

SG3225VEN156.250000MHZ-DDGA,EPSON晶振,3225差分晶振

Original model 原廠編碼	SG3225VEN156.250000MHZ-DDGA
Manufacturer 品牌	EPSON
Part Series 型號	SG3225VEN
Type 類型	XO
Frequency 頻率	156.25M
Output Type 輸出方式	LVDS差分晶振
Supply Voltage 電壓	2.5V
Frequency Stability 頻率穩定性	±25ppm
Operating Temperature 工作溫度	-40℃~+85℃

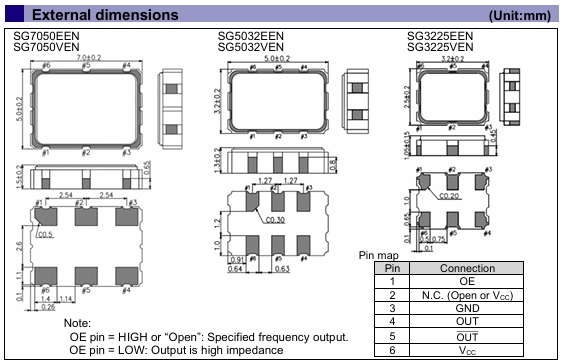

Package Size 包裝尺寸	3225mm
Package Height 厚度	0.65mm
Termination 腳位	6 pads
Package Type 封裝類型	6- SMD
Lead Free 無鉛	Yes
Mounting Style 安裝方式	Surface Mount
Packaging 包裝	Tape and Reel

SG3225VEN156.250000MHZ-DDGA,EPSON晶振,3225差分晶振

NI-10M-3510	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.2ppb
NI-10M-3560	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.1ppb
OXETECJANF-40.000000	Taitien	OX	XO (Standard)	40 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGCJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-24.576000	Taitien	OX	XO (Standard)	24.576 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETHEJANF-12.000000	Taitien	OX	XO (Standard)	12 MHz	CMOS	2.8V ~ 3.3V	±100ppm
OXETGCJANF-36.000000	Taitien	OX	XO (Standard)	36 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-40.000000	Taitien	OX	XO (Standard)	40 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGCJANF-16.000000	Taitien	OX	XO (Standard)	16 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-24.576000	Taitien	OX	XO (Standard)	24.576 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-16.000000	Taitien	OX	XO (Standard)	16 MHz	CMOS	3.3V	±50ppm
OXKTGLJANF-19.200000	Taitien	OX	XO (Standard)	19.2 MHz	CMOS	1.8V	±50ppm
OXKTGLJANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	1.8V	±50ppm
OXETGCJANF-50.000000	Taitien	OX	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-54.000000	Taitien	OX	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OXKTGLKANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	1.8V	±50ppm
OCETDCJTNF-66.000000MHZ	Taitien	OC	XO (Standard)	66 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETECJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGJJANF-7.680000	Taitien	OX	XO (Standard)	7.68 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OYETCCJANF-12.288000	Taitien	OY	XO (Standard)	12.288 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETGLJANF-38.880000	Taitien	OX	XO (Standard)	38.88 MHz	CMOS	3.3V	±50ppm
OCETDCKANF-12.800000	Taitien	OC	XO (Standard)	12.8 MHz	CMOS	3.3V	±25ppm
OCETECJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±30ppm
OCETCCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±20ppm
OCETCCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±20ppm
OCETDCKTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETDLJANF-2.048000	Taitien	OC	XO (Standard)	2.048 MHz	CMOS	3.3V	±25ppm
OCETELJANF-8.000000	Taitien	OC	XO (Standard)	8 MHz	CMOS	3.3V	±30ppm
OCETGCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-24.576000	Taitien	OC	XO (Standard)	24.576 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-4.000000	Taitien	OC	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm
OCETGCJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-20.000000	Taitien	OC	XO (Standard)	20 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm
OCETHCJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	1.8V	±100ppm
OCKTGLJANF-20.000000	Taitien	OC	XO (Standard)	20 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-30.000000	Taitien	OC	XO (Standard)	30 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-31.250000	Taitien	OC	XO (Standard)	31.25 MHz	CMOS	1.8V	±50ppm
OCETDCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm
OCETDCJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETGCJANF-33.333000	Taitien	OC	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.667000	Taitien	OC	XO (Standard)	66.667 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-27.000000	Taitien	OC	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-33.333000	Taitien	OC	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.000000	Taitien	OC	XO (Standard)	66 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-80.000000	Taitien	OC	XO (Standard)	80 MHz	CMOS	3.3V	±50ppm
OCJTDCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	2.5V	±25ppm
OCKTGLJANF-24.000000	Taitien	OC	XO (Standard)	24 MHz	CMOS	1.8V	±50ppm
OXETGLJANF-12.000000	Taitien	OX	XO (Standard)	12 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETDLJANF-8.704000	Taitien	OX	XO (Standard)	8.704 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXKTGCJANF-37.125000	Taitien	OX	XO (Standard)	37.125 MHz	CMOS	1.8V	±50ppm
OXETCLJANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETDLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETGLJANF-48.000000	Taitien	OX	XO (Standard)	48 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXJTDLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.5V	±25ppm
OXJTGLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm
