- 規格型號：10539072
- 頻率：18.432 MHz
- 尺寸：3.20mm x 2.50mm
- 產品描述：CS325S18432000ABJT|小型貼裝晶振|CS325S石英晶體|3225無源晶振,四腳貼片晶振,CS325S系列晶振,可有效抵御環境溫度波動對頻率輸出的影響,能滿足智能手機,智能穿戴,物聯網傳感器等設備對時鐘信號精度的基礎需求,是保障設...

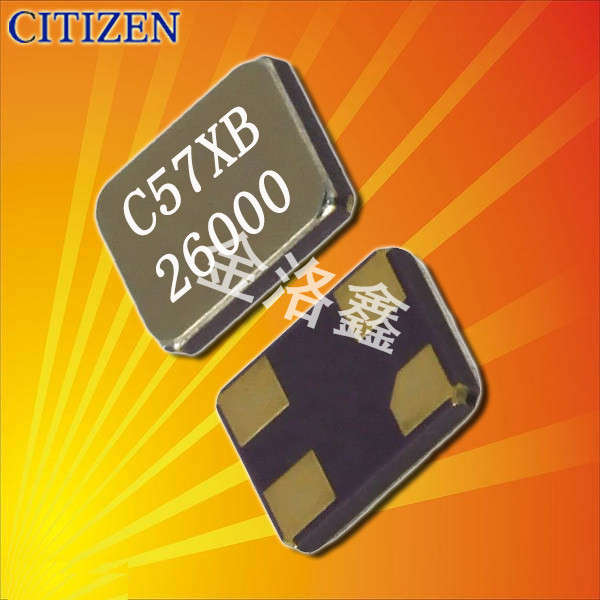

CS325S18432000ABJT|小型貼裝晶振|CS325S石英晶體|3225無源晶振
.png)
.png)
CS325S18432000ABJT|小型貼裝晶振|CS325S石英晶體|3225無源晶振
CS325S18432000ABJT作為3225封裝的無源晶振,具備出色的系統兼容性,能與各類電子設備的電路架構無縫適配.首先,無源晶振的設計無需內置驅動電路,僅需搭配簡單的外部電容,電阻即可工作,簡化了設備硬件設計,降低了電路復雜度與成本,尤其適合對成本敏感的消費電子,物聯網設備批量生產場景.其次,3225晶振封裝是電子行業通用的小型貼片封裝規格,大部分PCB設計軟件與自動化貼裝設備均支持該封裝的布局與生產,設備廠商無需對現有生產線或設計方案進行大幅調整,即可直接替換同規格晶振,縮短產品研發與生產周期.此外,該晶振的工作電壓范圍寬泛,可適配1.8V,2.5V,3.3V等主流系統電源,進一步提升了與不同設備的兼容能力.
.png)
.png)
CS325S18432000ABJT|小型貼裝晶振|CS325S石英晶體|3225mm無源晶振
| 原廠型號 Original model ： | CS325S18432000ABJT | 品牌 brand ： | Citizen |
| 品牌 brand ： | Citizen | ESR（等效串聯電阻） Resistance) | - |
| 型號名稱 Model name： | CS325S | 溫度 Operating Temperature | -10°C ~ 60°C |
| Type 系列： | MHz Crystal | 腳位 Termination： | 4 pad |
| 頻率 frequency ： | 18.432 MHz | 封裝類型 Package Type： | 4-SMD |
| Frequency Stability頻率穩定度 | ±50ppm | 高度 Package Height： | 0.6mm |
| frequency tolerance頻率容差 | ±30ppm | 最小包裝數 MPQ ： | 3000 |
| Load capacitance 負載電容 | 18pF | 包裝 Packaging： | Tape and Reel |

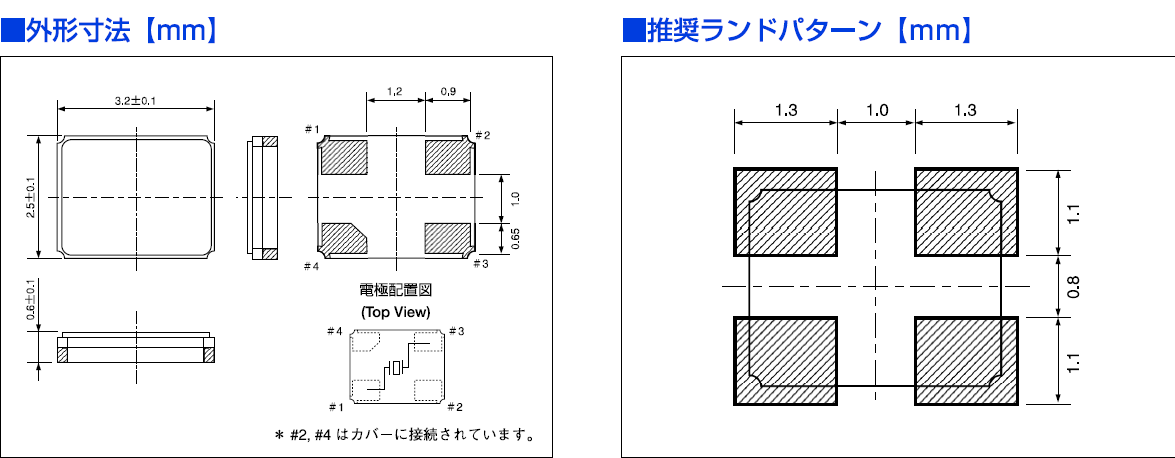

| Size / Dimension 尺寸 | 3.20mm x 2.50mm | 安裝方式 Mounting Style： | Surface Mount |
.png)
.png)
CS325S18432000ABJT|小型貼裝晶振|CS325S石英晶體|3225無源晶振
.png)
CS325S18432000ABJT|小型貼裝晶振|CS325S石英晶體|3225無源晶振
| HCM494000000ABJT | Citizen | HCM49 | 4 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4910000000ABJT | Citizen | HCM49 | 10 MHz | ±50ppm | ±30ppm | 18pF |
| HCM498000000ABJT | Citizen | HCM49 | 8 MHz | ±50ppm | ±30ppm | 18pF |
| CM315D32768DZFT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM315D32768DZBT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 6pF |
| CM315D32768DZCT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 9pF |
| CM315D32768HZFT | Citizen | CM315D | 32.768 kHz | - | ±5ppm | 12.5pF |
| CM315D32768EZFT | Citizen | CM315D | 32.768 kHz | - | ±10ppm | 12.5pF |
| CFS-20632768EZBB | Citizen | CFS-206 | 32.768 kHz | - | ±10ppm | 6pF |
| CS325S24000000ABJT | Citizen | CS325S | 24 MHz | ±50ppm | ±30ppm | 18pF |
| CS325S25000000ABJT | Citizen | CS325S | 25 MHz | ±50ppm | ±30ppm | 18pF |
| CFS-20632768HZFB | Citizen | CFS-206 | 32.768 kHz | - | ±5ppm | 12.5pF |
| CM41532768DZFT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM41532768DZCT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 9pF |
| CM41532768DZYT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 7pF |
| CFS-14532768DZFB | Citizen | CFS145 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM315H32768DZFT | Citizen | CM315H | 32.768 kHz | - | ±20ppm | 12.5pF |
| CFS-20632768DZFB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CFS-20632768DZYB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 7pF |
| CFS-20632768DZCB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 9pF |
| CM315H32768DZBT | Citizen | CM315H | 32.768 kHz | - | ±20ppm | 6pF |
| CM315H32768EZFT | Citizen | CM315H | 32.768 kHz | - | - | 12.5pF |
| CMR200T32768DZFT | Citizen | CMR200T | 32.768 kHz | - | ±20ppm | 12.5pF |
| HCM4912000000ABJT | Citizen | HCM49 | 12 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4925000000ABJT | Citizen | HCM49 | 25 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4920000000ABJT | Citizen | HCM49 | 20 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4924000000ABJT | Citizen | HCM49 | 24 MHz | ±50ppm | ±30ppm | 18pF |
| HCM497372800ABJT | Citizen | HCM49 | 7.3728 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4918432000ABJT | Citizen | HCM49 | 18.432 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494915200ABJT | Citizen | HCM49 | 4.9152 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4914745600ABJT | Citizen | HCM49 | 14.7456 MHz | ±50ppm | ±30ppm | 18pF |
| HCM493686400ABJT | Citizen | HCM49 | 3.6864 MHz | ±50ppm | ±30ppm | 18pF |
| HCM496000000ABJT | Citizen | HCM49 | 6 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4911059200ABJT | Citizen | HCM49 | 11.0592 MHz | ±50ppm | ±30ppm | 18pF |
| HCM497680000ABJT | Citizen | HCM49 | 7.68 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494194304ABJT | Citizen | HCM49 | 4.194304 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494032000ABJT | Citizen | HCM49 | 4.032 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4922118400ABJT | Citizen | HCM49 | 22.1184 MHz | ±50ppm | ±30ppm | 18pF |
| CM200C32768DZCT | Citizen | CM200C | 32.768 kHz | - | ±20ppm | 9pF |
| CFS-20632768EZFB | Citizen | CFS-206 | 32.768 kHz | - | ±10ppm | 12.5pF |
| CM315DL32768EZFT | Citizen | CM315DL | 32.768 kHz | - | ±10ppm | 12.5pF |
| CM315E32768DZBT | Citizen | CM315E | 32.768 kHz | - | ±20ppm | 6pF |
| CS325S16000000ABJT | Citizen | CS325S | 16 MHz | ±50ppm | ±30ppm | 18pF |
| CS325S27000000ABJT | Citizen | CS325S | 27 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S10000000ABJB | Citizen | HC49US | 10 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S11059200ABJB | Citizen | HC49US | 11.0592 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S7372800ABJB | Citizen | HC49US | 7.3728 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S24576000ABJB | Citizen | HC49US | 24.576 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S22118400ABJB | Citizen | HC49US | 22.1184 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S24000000ABJB | Citizen | HC49US | 24 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S25000000ABJB | Citizen | HC49US | 25 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S20000000ABJB | Citizen | HC49US | 20 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S4000000ABJB | Citizen | HC49US | 4 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S9216000ABJB | Citizen | HC49US | 9.216 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S8000000ABJB | Citizen | HC49US | 8 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S16000000ABJB | Citizen | HC49US | 16 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S18432000ABJB | Citizen | HC49US | 18.432 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S12000000ABJB | Citizen | HC49US | 12 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S14745600ABJB | Citizen | HC49US | 14.7456 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S7680000ABJB | Citizen | HC49US | 7.68 MHz | ±50ppm | ±30ppm | 18pF |
