首頁進口晶振1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|無線模塊晶振

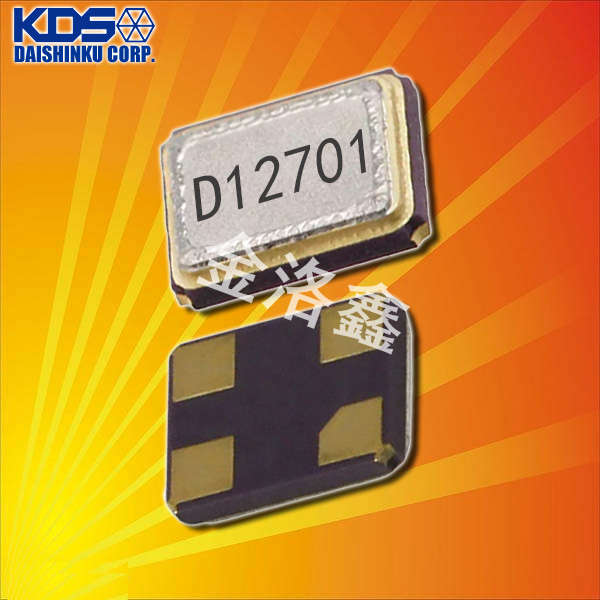

1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|無線模塊晶振

規格型號：58460192
頻率：38.400MHZ
尺寸：2016mm
PDF
產品描述：1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|無線模塊晶振,尺寸2016mm,頻率38.400MHZ,遠優于普通無線晶振標準,確保Wi-Fi模塊在低溫下正常接入網絡,藍牙模塊在高溫下保持穩定數據交互,LoRa模塊在溫差變化中維持遠距離...

1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|6G無線模塊晶振
1ZZNAE38400AA0C型號晶振,精準對應DSX211SH系列技術標準,采用SMD(表面貼裝)工藝的水晶振動子結構,是專為無線模塊研發的高頻振蕩核心元件,從設計源頭便深度契合無線信號傳輸,數據交互的穩定性需求.其標稱頻率經精密校準鎖定為38.4MHz(可根據無線模塊需求拓展至16MHz-50MHz),能完美匹配Wi-Fi模塊的信號收發,藍牙晶振模塊的短距離數據傳輸,LoRa模塊的遠距離低功耗通信等核心場景,確保無線數據在調制,解調過程中時序精準,避免因頻率偏差導致的信號丟包,連接中斷.輸出穩定性誤差嚴格控制在±10ppm以內,這一精度針對無線模塊常見的電壓波動,環境干擾做了特殊優化,遠高于普通民用晶振,可有效解決因頻率漂移引發的Wi-Fi斷連,藍牙通話卡頓,LoRa數據傳輸延遲等問題.

1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|6G無線模塊晶振

原廠型號 Originalmodel：	1ZZNAE38400AA0C	品牌brand：	KDS晶振
品牌brand：	KDS晶振	ESR（等效串聯電阻）Resistance)	-
型號名稱 Modelname：	DSX211SH晶振	溫度OperatingTemperature	−30 +85℃
Type系列：	MHZCrystal	腳位Termination：	4pad
頻率 frequency：	38.400MHZ	封裝類型PackageType：	4-Smd
FrequencyStability頻率穩定度	±30ppm	高度PackageHeight：	0.45mm
frequencytolerance頻率容差	±20ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	10PF	包裝Packaging：	TapeandReel
Size/Dimension尺寸	2016石英晶振	安裝方式MountingStyle：	SurfaceMount

1ZZNAE38400AA0C晶振|SMD水晶振動子|6G無線模塊晶振
|

1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|6G無線模塊晶振

KDS晶振	1TJF0SPDJ1AI00S	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF080DP1AI00P	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF090DP1AI007	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF0SPDP1AI008	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF125DP1AI009	DST310S	3215	32.768KHZ	12.5PF	20PPM
KDS晶振	1TJF090DP1AA00L	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF080DP1AA00K	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDP1AA00G	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF0SPDN1A000B	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TD125DGNS003	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS036	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS002	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD060DHNS014	DT-26	206	32.768KHZ	6.0PF	20PPM
KDS晶振	1TD125BHNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD075BHNS001	DT-26	206	32.768KHZ	7.5PF	10PPM
KDS晶振	1TD125BFNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD1001HNS001	DT-26	206	32.768KHZ	10.0PF	-6/+2PPM
KDS晶振	1TD1250HNS005	DT-26	206	32.768KHZ	12.5PF	30/40P
KDS晶振	1TC125DFNS030	DT-38	308	32.768KHZ	12.5PF	20PPM
KDS晶振	1TC125NFNS002	DT-38	308	32.768KHZ	12.5PF	1000PPM
KDS晶振	1TC125AFSS003	DT-38	308	32.768KHZ	12.5PF	5PPM
KDS晶振	1TC250E65	DT-38	308	32.768KHZ	12.5PF	+12/+28PPM
KDS晶振	1C240000AB0G	DSX321G	3225	40.000MHZ	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6MHZ	10PF	30PPM
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332MHZ	12PF	20PPM
KDS晶振	1ZZNAE26000AB0J	DSX211SH	2016	26.000MHZ	7PF	10PPM
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408MHZ	16PF	50PPM
KDS晶振	1AJ250004B	SMD-49	11*4.6	25.000MHZ	20PF	30PPM
KDS晶振	1ZZCAA24000BE0B	DSX211G	2016	24.000MHZ	10PF	20PPM
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000MHZ	11PF	12PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000MHZ	10PF	30PPM
KDS晶振	1N240000AB0J	DSX321G	3225	40.000MHZ	15PF	15PPM
KDS晶振	1XSE098304AR2	DSO321SR	3225	98.304MHZ	3.3V	50ppm
KDS晶振	1AJ100005B	SMD-49	11*4.6	10.000MHZ	12PF	50PPM
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000MHZ	7PF	10PPM
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000MHZ	16PF	50PPM
KDS晶振	1AJ240006AK	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ240006BB	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ245765C	SMD-49	11*4.6	24.576MHZ	18PF	30PPM
KDS晶振	ZC08759	DSO211AH	2016	25.000MHZ	3.3V	50ppm
KDS晶振	1AR270002GA	SMD-49	11*4.6	27.000MHZ	12.9PF	20PPM
KDS晶振	1AR304002A	SMD-49	11*4.6	30.400MHZ	12PF	50ppm
KDS晶振	1XXD16367MAA	DSB211SDN	2016	16.367MHZ	3.3V	1.5ppm
KDS晶振	ZC12467	DSA211SDN	2016	16.32MHZ	3.3V	1.5ppm
KDS晶振	1XXB16367MAA	DSB221SDN	2520	16.367MHZ	2.8V	1.5ppm
KDS晶振	1XXB16369JFA	DSB221SDN	2520	16.369MHZ	3.3V	1.5ppm
KDS晶振	ZC09382	DSA535SG	5032	18.432MHZ	3.3V	1.5ppm
KDS晶振	ZC12456	DSB211SDN	2016	16.320MHZ	3.3V	1.5ppm
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000MHZ	12PF	15ppm
KDS晶振	ZC12965	DSA321SDN	3225	23.04MHZ	3.3V	1.5ppm
KDS晶振	ZC13727	DSX221SH	2520	24.000MHZ	10PF	30ppm
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000MHZ	9PF	10ppm
KDS晶振	X1H013000B81H	HSX531S	5032	13.000MHZ	8PF	10ppm
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000MHZ	10PF	20ppm
KDS晶振	1XSE009600AV	DSO321SV	3225	9.6MHZ	3.3V	100ppm
KDS晶振	1XSE012000AR58	DSO321SR	3225	12.000MHZ	3.3V	50ppm
KDS晶振	1ZZNAE48000ZZ0R	DSX211SH	2016	48.000MHZ	7PF	20PPM
KDS晶振	1N227000EE0L	DSX321G	3225	27.000MHZ	9PF	50ppm
KDS晶振	1ZZCAA27120BB0D	DSX211G	2016	27.12MHZ	10PF	20PPM
KDS晶振	1N226000AA0L	DSX321G	3225	26.000MHZ	7.5pf	10ppm
