- 規格型號：55746090
- 頻率：32.768kHz
- 尺寸：3215mm
- 產品描述：CM315D32768EZBT|32.768kHz|Citizen諧振器|小型攜帶機器晶振,在-20℃~+70℃的常規工作溫度范圍內,頻率精度控制在 ±20ppm 以內,溫漂性能穩定,可有效抵御環境溫度波動對頻率輸出的影響,其低功耗特性顯著,搭配外部驅動電...

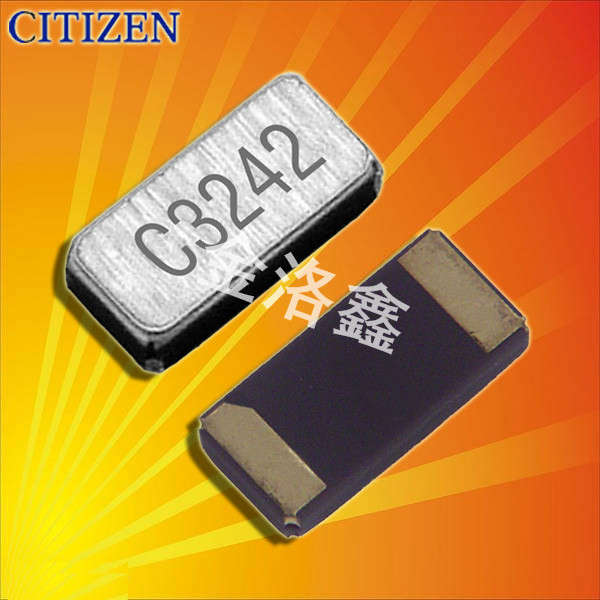

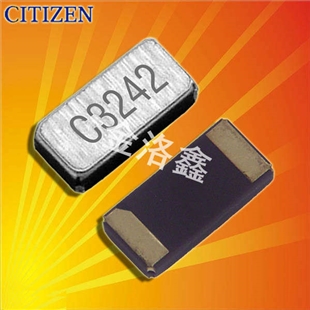

CM315D32768EZBT|32.768kHz|Citizen諧振器|小型攜帶機器晶振
.png)
.png)
CM315D32768EZBT|32.768kHz|Citizen諧振器|小型攜帶機器晶振
CM315D32768EZBT晶振專為小型攜帶機器設計,在尺寸與性能上深度契合便攜設備需求.其采用超小型3215封裝晶體,體積小巧,可輕松集成到智能手環,電子體溫計,便攜血糖儀等空間受限的小型攜帶機器中,不占用過多PCB板空間,為設備微型化設計提供支持.同時,針對小型攜帶機器多為電池供電的特點,該晶振具備極低的工作功耗,在設備待機或低功耗模式下,能有效降低電能消耗,延長設備續航時間,避免頻繁充電影響用戶體驗.此外,其抗輕微振動與沖擊的特性,能應對小型攜帶機器日常使用中的顛簸與碰撞,保障頻率輸出穩定,確保設備功能正常運行.
.png)
.png)
CM315D32768EZBT|32.768kHz|Citizen諧振器|小型攜帶機器晶振
| 原廠型號 Original model ： | CM315D32768EZBT | 品牌 brand ： | Citizen晶體諧振器 |
| 品牌 brand ： | Citizen | ESR（等效串聯電阻） Resistance) | - |
| 型號名稱 Model name： | CM315D | 溫度 Operating Temperature | -40°C ~ 85°C |
| Type 系列： | kHz Crystal | 腳位 Termination： | 2 pad |
| 頻率 frequency ： | 32.768kHz | 封裝類型 Package Type： | 2-SMD |
| Frequency Stability頻率穩定度 | - | 高度 Package Height： | 0.9mm |
| frequency tolerance頻率容差 | ±10ppm | 最小包裝數 MPQ ： | 3000 |
| Load capacitance 負載電容 | 6pF | 包裝 Packaging： | Tape and Reel |

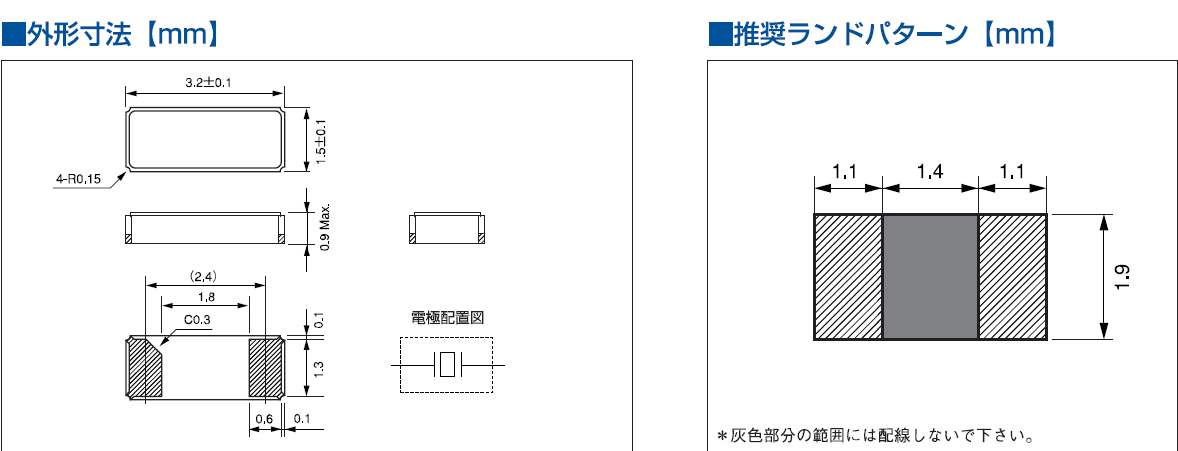

| Size / Dimension 尺寸 | 3.20mm x 1.50mm | 安裝方式 Mounting Style： | Surface Mount |
.png)
.png)
CM315D32768EZBT|32.768kHz|Citizen諧振器|小型攜帶機器晶振
.png)
.png)
CM315D32768EZBT|32.768kHz|Citizen諧振器|小型攜帶機器晶振
| HCM494000000ABJT | Citizen | HCM49 | 4 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4910000000ABJT | Citizen | HCM49 | 10 MHz | ±50ppm | ±30ppm | 18pF |
| HCM498000000ABJT | Citizen | HCM49 | 8 MHz | ±50ppm | ±30ppm | 18pF |
| CM315D32768DZFT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM315D32768DZBT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 6pF |
| CM315D32768DZCT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 9pF |
| CM315D32768HZFT | Citizen | CM315D | 32.768 kHz | - | ±5ppm | 12.5pF |
| CM315D32768EZFT | Citizen | CM315D | 32.768 kHz | - | ±10ppm | 12.5pF |
| CFS-20632768EZBB | Citizen | CFS-206 | 32.768 kHz | - | ±10ppm | 6pF |
| CS325S24000000ABJT | Citizen | CS325S | 24 MHz | ±50ppm | ±30ppm | 18pF |
| CS325S25000000ABJT | Citizen | CS325S | 25 MHz | ±50ppm | ±30ppm | 18pF |
| CFS-20632768HZFB | Citizen | CFS-206 | 32.768 kHz | - | ±5ppm | 12.5pF |
| CM41532768DZFT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM41532768DZCT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 9pF |
| CM41532768DZYT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 7pF |
| CFS-14532768DZFB | Citizen | CFS145 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM315H32768DZFT | Citizen | CM315H | 32.768 kHz | - | ±20ppm | 12.5pF |
| CFS-20632768DZFB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CFS-20632768DZYB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 7pF |
| CFS-20632768DZCB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 9pF |
| CM315H32768DZBT | Citizen | CM315H | 32.768 kHz | - | ±20ppm | 6pF |
| CM315H32768EZFT | Citizen | CM315H | 32.768 kHz | - | - | 12.5pF |
| CMR200T32768DZFT | Citizen | CMR200T | 32.768 kHz | - | ±20ppm | 12.5pF |
| HCM4912000000ABJT | Citizen | HCM49 | 12 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4925000000ABJT | Citizen | HCM49 | 25 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4920000000ABJT | Citizen | HCM49 | 20 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4924000000ABJT | Citizen | HCM49 | 24 MHz | ±50ppm | ±30ppm | 18pF |
| HCM497372800ABJT | Citizen | HCM49 | 7.3728 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4918432000ABJT | Citizen | HCM49 | 18.432 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494915200ABJT | Citizen | HCM49 | 4.9152 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4914745600ABJT | Citizen | HCM49 | 14.7456 MHz | ±50ppm | ±30ppm | 18pF |
| HCM493686400ABJT | Citizen | HCM49 | 3.6864 MHz | ±50ppm | ±30ppm | 18pF |
| HCM496000000ABJT | Citizen | HCM49 | 6 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4911059200ABJT | Citizen | HCM49 | 11.0592 MHz | ±50ppm | ±30ppm | 18pF |
| HCM497680000ABJT | Citizen | HCM49 | 7.68 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494194304ABJT | Citizen | HCM49 | 4.194304 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494032000ABJT | Citizen | HCM49 | 4.032 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4922118400ABJT | Citizen | HCM49 | 22.1184 MHz | ±50ppm | ±30ppm | 18pF |
| CM200C32768DZCT | Citizen | CM200C | 32.768 kHz | - | ±20ppm | 9pF |
| CFS-20632768EZFB | Citizen | CFS-206 | 32.768 kHz | - | ±10ppm | 12.5pF |
| CM315DL32768EZFT | Citizen | CM315DL | 32.768 kHz | - | ±10ppm | 12.5pF |
| CM315E32768DZBT | Citizen | CM315E | 32.768 kHz | - | ±20ppm | 6pF |
| CS325S16000000ABJT | Citizen | CS325S | 16 MHz | ±50ppm | ±30ppm | 18pF |
| CS325S27000000ABJT | Citizen | CS325S | 27 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S10000000ABJB | Citizen | HC49US | 10 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S11059200ABJB | Citizen | HC49US | 11.0592 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S7372800ABJB | Citizen | HC49US | 7.3728 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S24576000ABJB | Citizen | HC49US | 24.576 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S22118400ABJB | Citizen | HC49US | 22.1184 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S24000000ABJB | Citizen | HC49US | 24 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S25000000ABJB | Citizen | HC49US | 25 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S20000000ABJB | Citizen | HC49US | 20 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S4000000ABJB | Citizen | HC49US | 4 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S9216000ABJB | Citizen | HC49US | 9.216 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S8000000ABJB | Citizen | HC49US | 8 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S16000000ABJB | Citizen | HC49US | 16 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S18432000ABJB | Citizen | HC49US | 18.432 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S12000000ABJB | Citizen | HC49US | 12 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S14745600ABJB | Citizen | HC49US | 14.7456 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S7680000ABJB | Citizen | HC49US | 7.68 MHz | ±50ppm | ±30ppm | 18pF |
