GPS定位專用FA-20H晶振Q24FA20H0065100石英晶體諧振器,愛普生公司的多元化吸引了廣泛用戶的關注，在制造產品上面有著自身獨特的見解，憑著自身的魅力，贏得無數的訂單，作為優秀的制造商，一直持續不斷精進自我，為市場提供優質的產品，其中包含石英晶振，石英晶體振蕩器，壓控晶振等元器件。

Product Number	LxWxH	愛普生晶振	Frequency	CL Value	Freq.tol. @+25°C	Oper. Temper. range
Q24FA20H0059400	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	8 pF	+/-30 ppm	+/-30 ppm
Q24FA20H0060000	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	16 pF	+/-30 ppm	+/-30 ppm
Q24FA20H0061200	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm
Q24FA20H0061900	2.5 x 2 x 0.55mm	FA-20H	28.636360 MHz	21 pF	+/-30 ppm	+/-30 ppm
Q24FA20H0062300	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm	+/-30 ppm
Q24FA20H0063000	2.5 x 2 x 0.55mm	FA-20H	13.560000 MHz	12 pF	+/-20 ppm	+/-40 ppm
Q24FA20H0064500	2.5 x 2 x 0.55mm	FA-20H	28.636360 MHz	12 pF	+/-10 ppm	+/-20 ppm
Q24FA20H0065000	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-20 ppm	+/-20 ppm
Q24FA20H0065100	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	11 pF	+/-10 ppm	+/-10 ppm
Q24FA20H0065200	2.5 x 2 x 0.55mm	FA-20H	19.200000 MHz	9 pF	+/-10 ppm	-10/+8 ppm
Q24FA20H0065400	2.5 x 2 x 0.55mm	FA-20H	19.200000 MHz	11 pF	+/-30 ppm	+/-30 ppm
Q24FA20H0065900	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm
Q24FA20H0066700	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm	+/-20 ppm
Q24FA20H0066900	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	27 pF	+/-30 ppm	+/-30 ppm
Q24FA20H0067300	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm
Q24FA20H0068700	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-10 ppm	+/-30 ppm
Q24FA20H0069000	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	8 pF	+/-10 ppm	+/-20 ppm
Q24FA20H0070100	2.5 x 2 x 0.55mm	FA-20H	38.400000 MHz	10 pF	+/-10 ppm	+/-20 ppm
Q24FA20H0070400	2.5 x 2 x 0.55mm	FA-20H	14.318000 MHz	20 pF	+/-20 ppm	+/-30 ppm
Q24FA20H0070600	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	9 pF	+/-10 ppm	+/-12 ppm
Q24FA20H0072000	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	12 pF	+/-20 ppm	+/-30 ppm

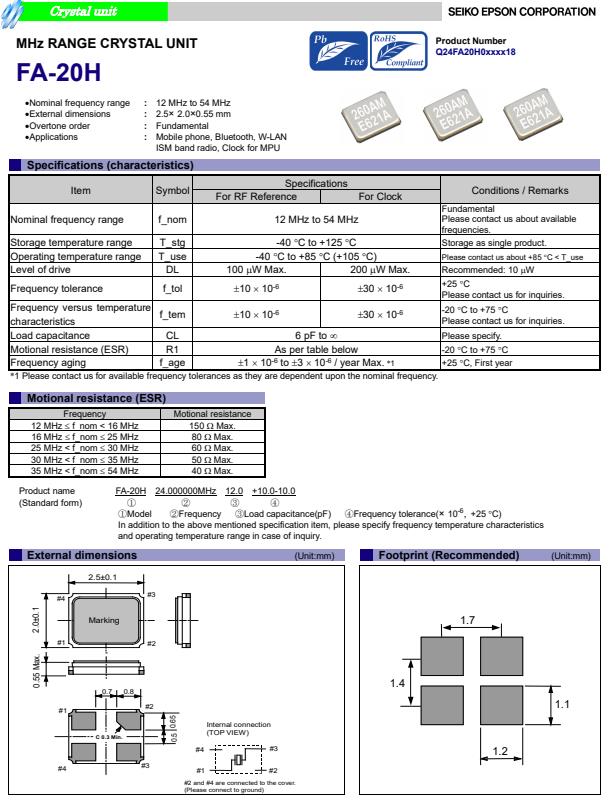

GPS定位專用FA-20H晶振Q24FA20H0065100石英晶體諧振器,愛普生的這款FA-20H晶振，編碼Q24FA20H0065100，頻率16.000000兆赫，尺寸(LxWxH)2.5 x 2 x 0.55 mm，客戶負載電容11pf，頻率公差+ / -10 ppm，F(xiàn)o / temp。特征公差+ / -10 ppm，溫度范圍-20至+75°C，具有非常高的穩定性和耐壓性能,非常適用于對設計面積敏感的GPS定位智能穿戴設備設計,FA-20H晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為GPS定位智能穿戴設備時鐘的最佳之選.

產品本身特點是體積小，耐高溫，穩定性能高，排帶包裝，應用自動貼片方便。愛普生晶振小體積SMD時鐘石英晶體諧振器，是貼片音叉晶體，千赫頻率元件，應用于時鐘模塊，智能手機，全球定位系統，因產品本身體積小，SMD編帶型，可應用于高性能自動貼片焊接，被廣泛應用到各種小巧的便攜式消費電子數碼時間產品，環保性能符合ROHS/無鉛標準.
